Glazed door leaf only - does not include frame or hardware.

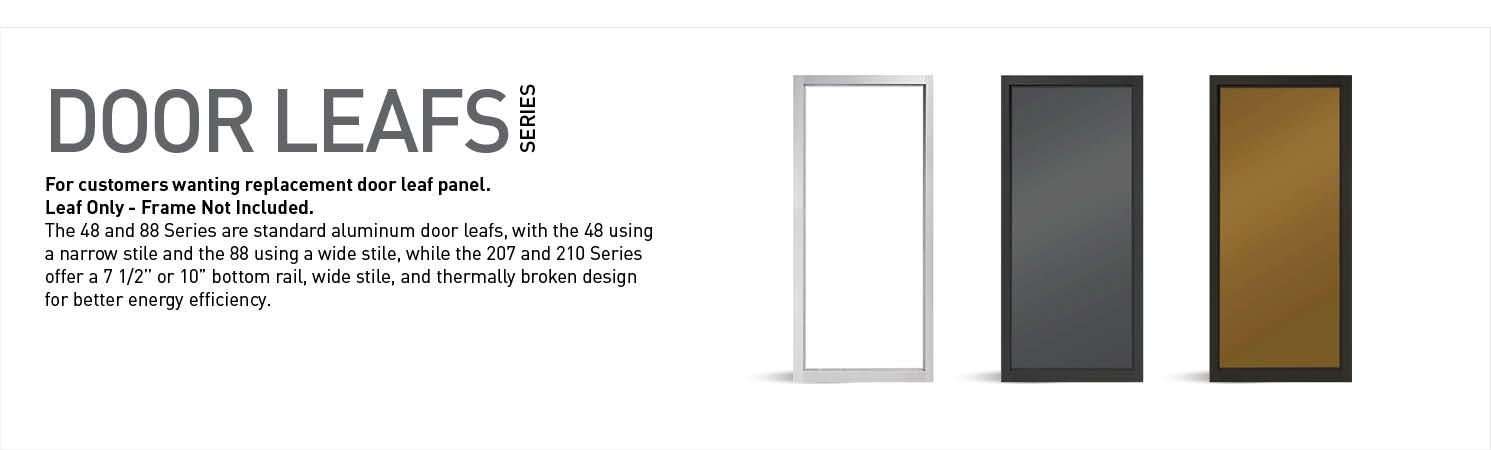

The 48 Series narrow stile aluminum entrance single door leaf is fully assembled and welded, designed for storefront and commercial entry applications with compatibility for standard 400, 450, 451 & Curtain Wall framing systems. The 48 Series delivers a balanced approach to design and durability, offering a refined entry solution for light to moderate traffic environments such as offices, retail storefronts, and mixed-use buildings.

 INCLUDES:

• 48 series door leafs are compatible with 400, 450, 451 & Curtain Wall frames.
• 1 3/4 inch thickness for broad hardware compatibility, mechanically fastened.
• Standard 1-7/8" Stiles complete with 2" Top Rail and 3-3/4" Bottom Rail.
• Available in clear, bronze, or black anodized finishes.
• Complete with clear, bronze, black, or rubber stops.
• Reinforced construction flexible glazing and multiple hinge preparations.
• Midrail option available.

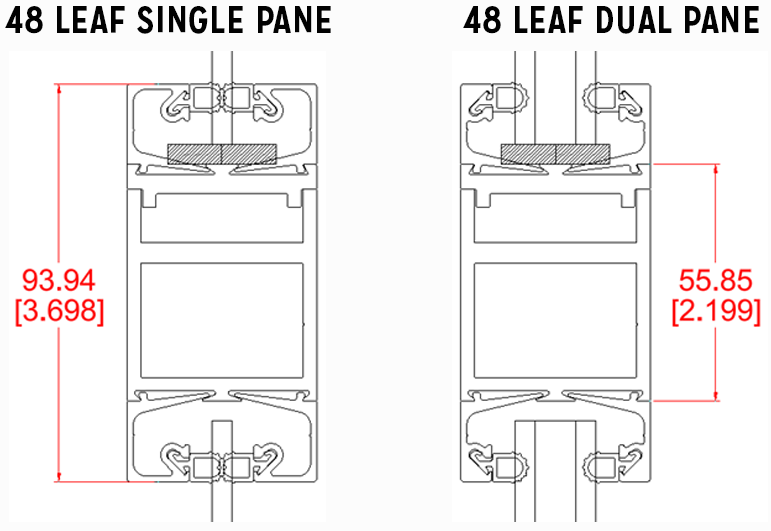

MIDRAIL

Standard Midrail size cross-section.

Custom Midrail options are available upon request. Width of rail and height from ground are required. Contact a sales representative for more information.

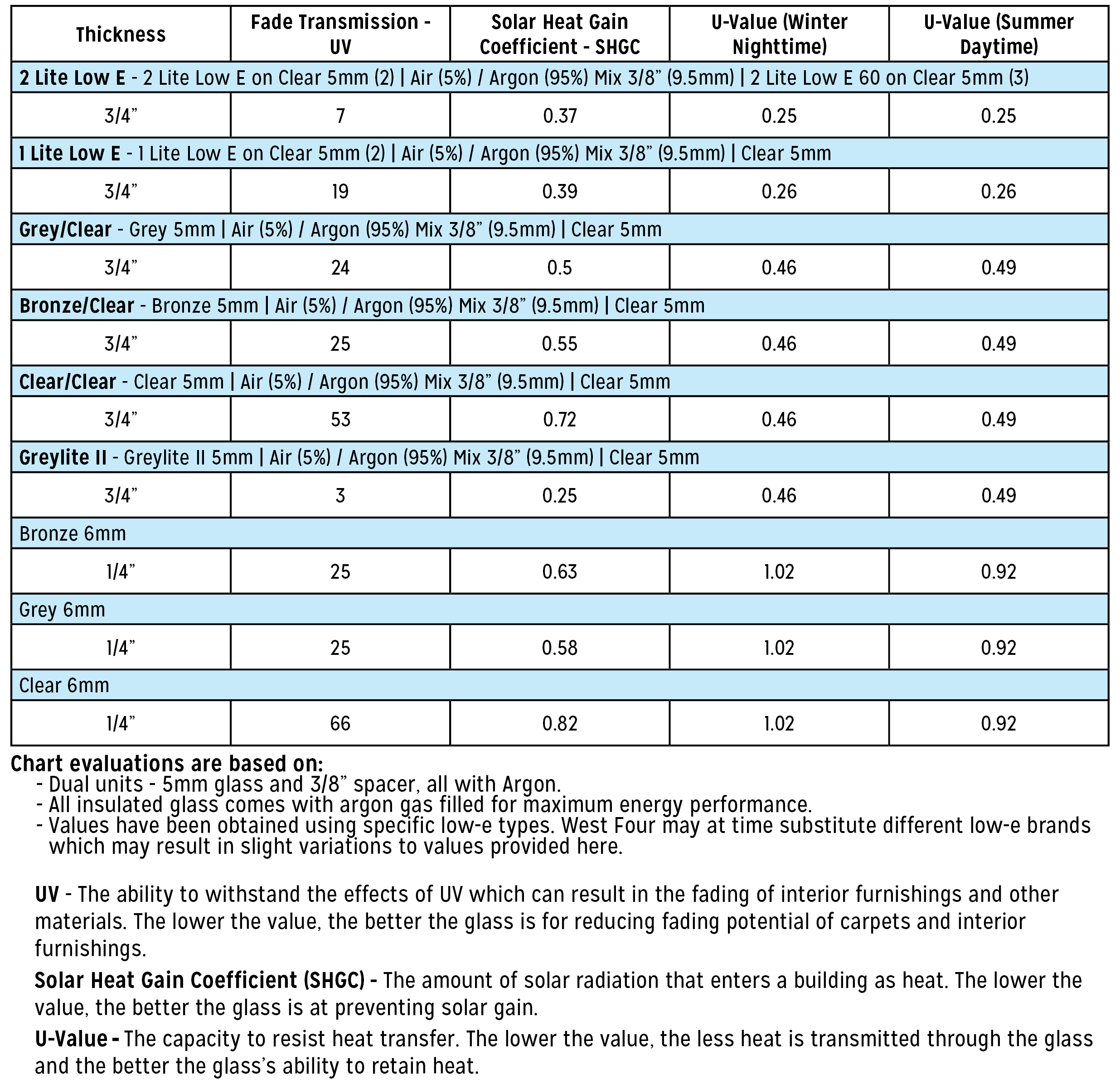

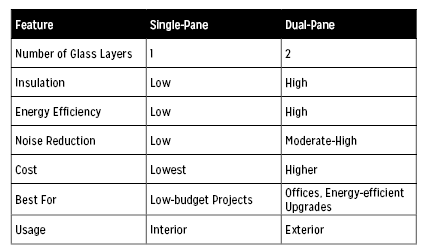

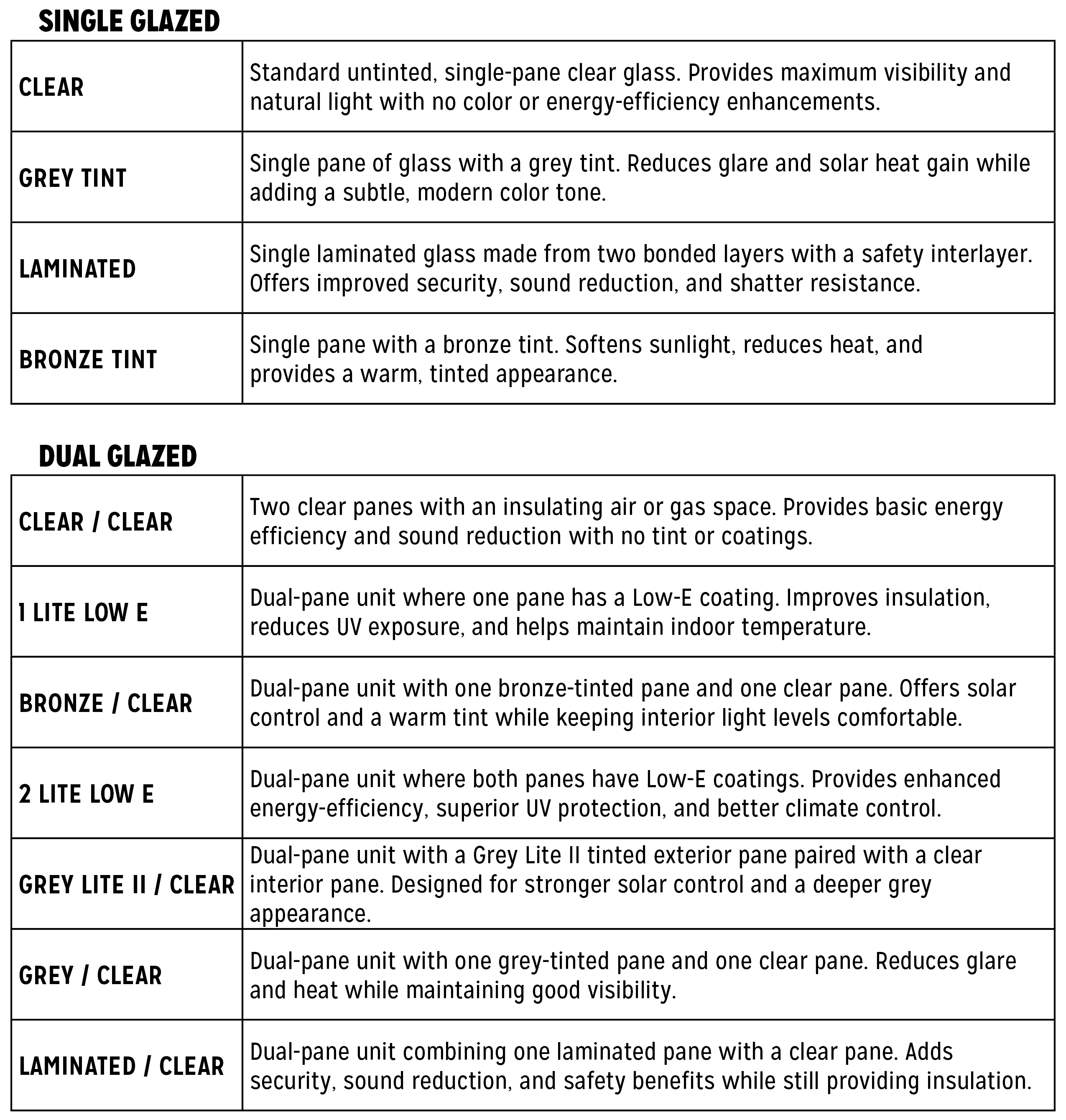

THREE GLAZING OPTIONS
Single glazed, Dual glazed or Open (no glass provided).

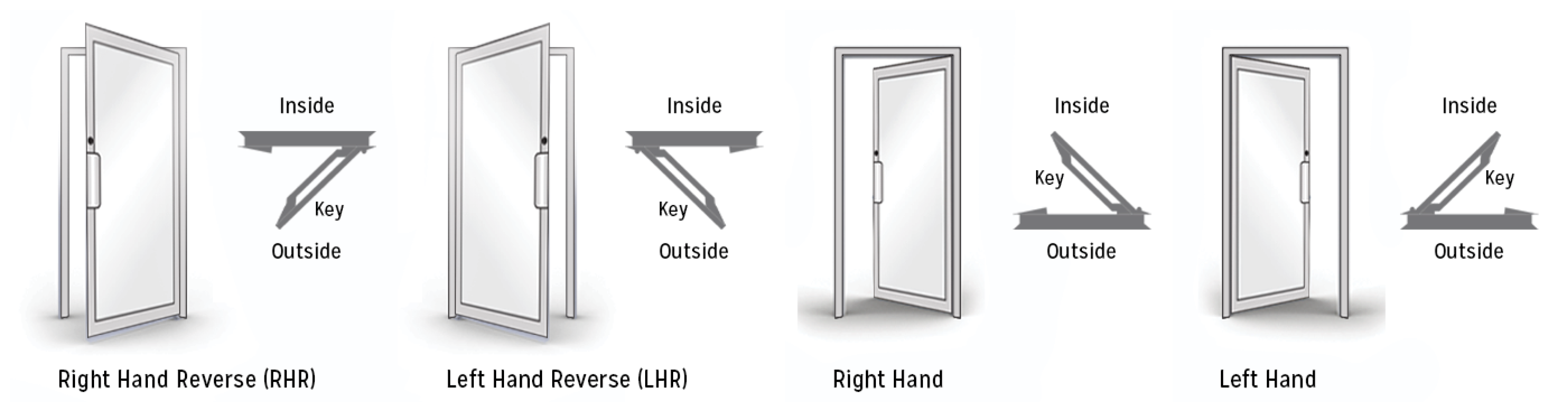

HANDING CHART

FINISHES
